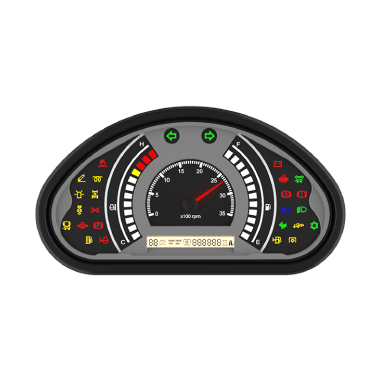

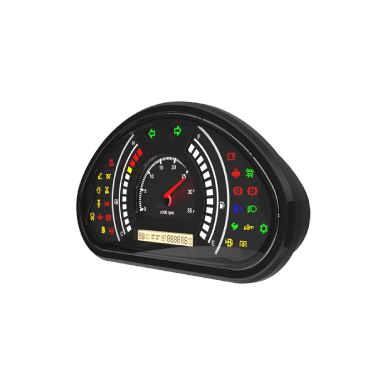

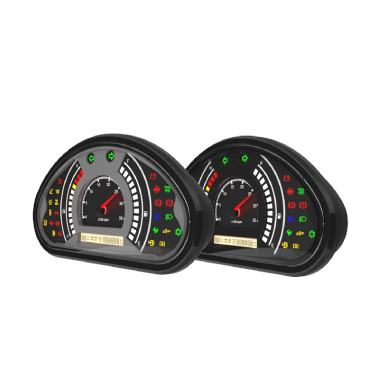

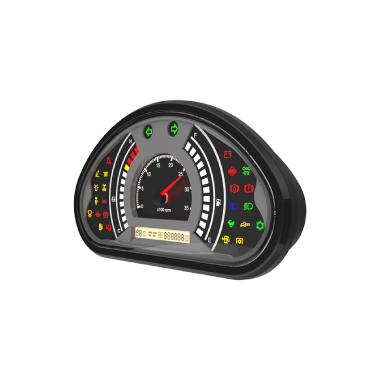

BC204 Instrument Cluster

ECO instrument cluster is a semi-programmable digital instrument cluster. Its optimized design provides less flexibility, but best economical solution.

  • Designed and manufactured in Turkey.
  • Semi-programmable digital instrument cluster.
  • Programmable via computer. Configuration settings can be uploaded or downloaded with computer software.
  • Compatible with all fuel sensors, engine and ambient temperature sensors. Sensor parameters can be configured via computer software.
  • Standby current consumption is only 0.1mA.
  • 26 pcs indicators.
  • Automatic light intensity adjustment (easy on the eye).
  • Speed, RPM, fuel level, engine temperature, odometer and total engine hour meter can be shown on product.
  • CAN BUS version is available.
  • Certificated IP66 grade housing.
  • Easy locked connector and springs at 4 sides provides additional security.
  • Quick montage (no screws needed).
  • Your own logo can be printed on the product and all indicator colors can be customized.
Contact us to discuss the details
Contact us to discuss the details

You can change your perspective and learn from our expertise in order to grow your business and expand globally, our team is ready to take the next step to accomplish your goals.

Operating Voltage 9V-16V DC
Operating Temperature -25°C/+70°C
IP Grade IP66(From Front Side)
Vibration Resistance Grade 5g (16-50Hz/0.5mm)
Electromagnetic Test Grade ECE R 10
Stand-by Current Consumption ~0.01mA
Display Type Custom LCD
Total Indicator 31 pcs
Mating Connector AMP 929053-1
Dimensions 256x140x44 mm
Housing Material UV resistant PC + ABS
Installation Easy Installation via 4 Springs
