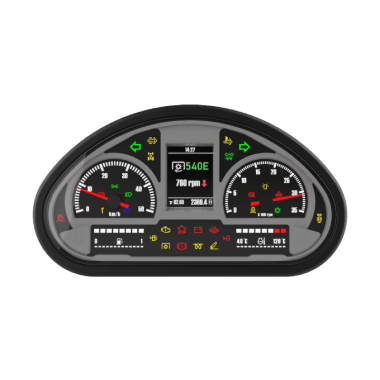

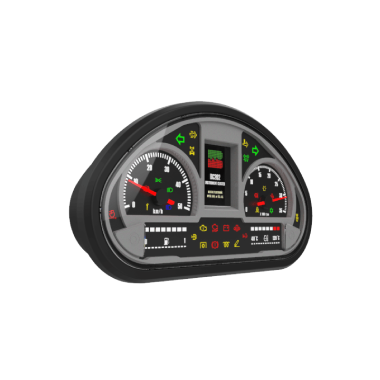

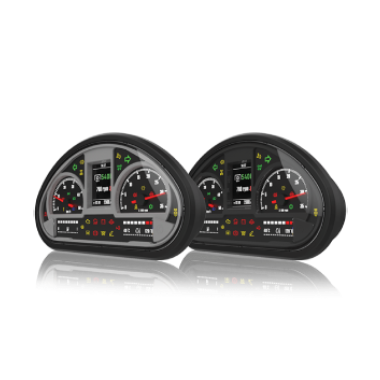

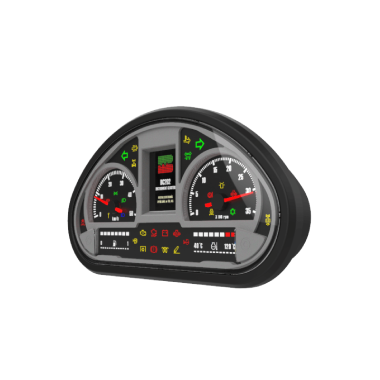

BC202 Instrument Cluster
Menus can be designed, input polarities can be adjusted, complex behavior algorithms can be implemented and most of the vehicle related parameters can be configured via our PC software.
- Designed and manufactured in Turkey.
- Semi-programmable digital instrument cluster.
- Buttons on left and right are touch buttons (much longer product life).
- Programmable via computer. Configuration settings can be uploaded or downloaded with computer software.
- Compatible with all fuel sensors, engine and ambient temperature sensors. Sensor parameters can be configured via computer software.
- Standby current consumption is only 0.3mA.
- TFT screen area can be customized to use as company logo, indicators and for messages.
- 28 pcs LED indicators.
- Automatic light intensity adjustment (easy on the eye).
- Speed, RPM, PTO RPM, ambient temperature, real time clock, fuel level, engine temperature, PTO modes,
- odometer, trip meter, total engine hour meter, trip engine hour meter and engine malfunction codes can be shown on product.
- Optionally can be produced with up to 27 digital inputs, 3 analog inputs, 2 frequency inputs and up to 2
- output with protection.
- Compatible to all CAN-BUS protocols.
- Buzzer and RTC are included.
- Certificated IP66 grade housing.
- Easy locked connector and springs at 4 sides provides additional security.
- Quick montage (no screws needed).
- Your own logo can be printed on the product and all indicator colors can be customized.
Technical Specs
| Operating Voltage | 9V-16V DC |
|---|---|
| Operating Temperature | -25°C / +70°C |
| IP Grade | IP66 (From Front Side) |
| Vibration Resistance Grade | 5g (16-50 Hz / 0.5mm) |
| Electromagnetic Test Grade | ECE R 10 |
| Stand-by Current Consumption | ~0.3mA |
| Display Type | TFT |
| Max. Digital Input | 27 pcs (Alternator input has 320mA excitation current.) |
| Max. Analog Input | 3 pcs |
| Max. Signal Input | 2 pcs |
| Max. Output | 2 pcs |
| Total Indicator | 29 pcs + TFT |
| Mating Connector | AMP 929053-1 |
| Dimensions | 256 x 140 x 44 mm |
| Housing Material | UV resistant PC + ABS |
| Installation | Easy Installation via 4 Springs |
