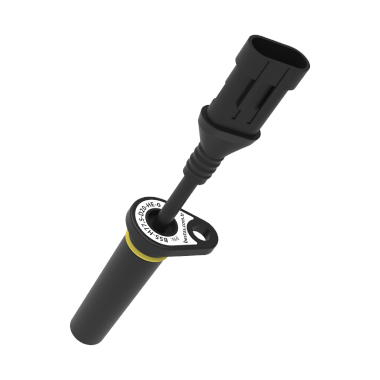

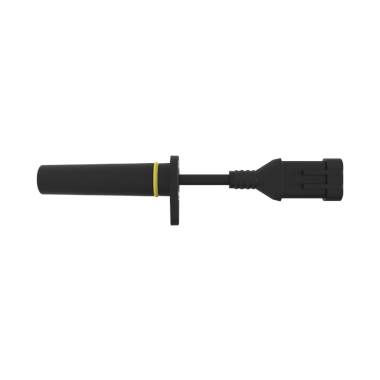

Hall Effect Speed Sensor
If you need a reliable and accurate solution, our hall effect speed sensor is the best fit for you! With functionalities such as; Reverse Voltage Protection, High Current Protection and Auto-Gain Technology.
Technical Specs
| Operating Voltage | 7V-32V |
|---|---|
| Operating Temprature | -40°C/+120°C |
| Sensor Type | Dual Hall Effect |
| Sensing Frequency Range | 0Hz-10KHz |
| Minimum Gear Pitch | 5 mm |
| Minimum Gear Tooth Depth | 3 mm |
| Sensing Distance Range | 0 mm-2,2 mm |
| Sensor Lengths | 28.5mm - 40mm - 77.5 mm |
| Ingress Protection | IP67 |

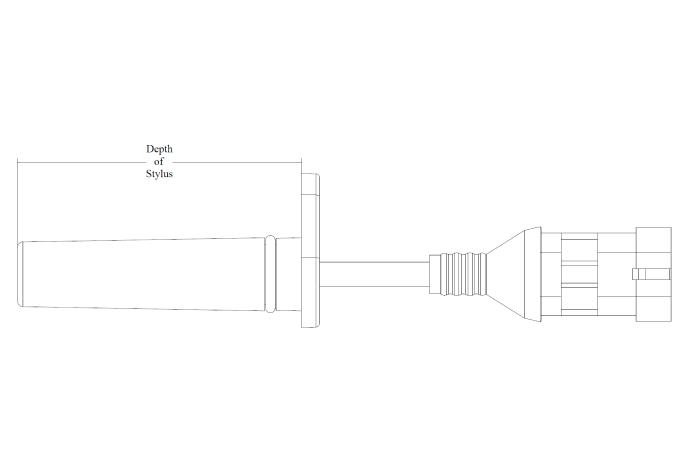

* Lenghts indicate the depth of stylus to the mounting surface
